1,600 lb. Heavy Duty ATV Trailer
GCV-1600A
- Tough and rugged steel construction
- 1-piece heavy-duty welded bed
- Huge, heavy-duty 58-inch x 30-inch oversized steel mesh bed
- 1,600 lb hauling capacity, perfect tool for use around the worksite or farm
- 18-in. flotation tires are designed to tackle any terrain
- Extra tall removable sides and 3-in-1 tailgate for added versatility when carrying larger load
- Heavy-duty foot pedal dump latch
- Chainsaw holder and long-handled tool holders included
- Trailer coupler adapter included
Product Details
Max Load
1,600 lbs.
Cu. Ft. Capacity
34
Product Dimensions
92.24″ x 50.2″ x 37.23″
Bed Dimensions
58″ x 30″
Product Weight
149.5 lbs.
Bed Material
Powder-Coated Steel
Frame Material
Powder-Coated Steel
Dumping
Yes
Handle Type
Tow Handle
Towable
Yes
Tire Size
18″
Tire Type
Flotation
Bore Size
1″
Product Resources
- Download
GCV-1600A Manual
- Watch Video
Gorilla Heavy Duty ATV Trailer

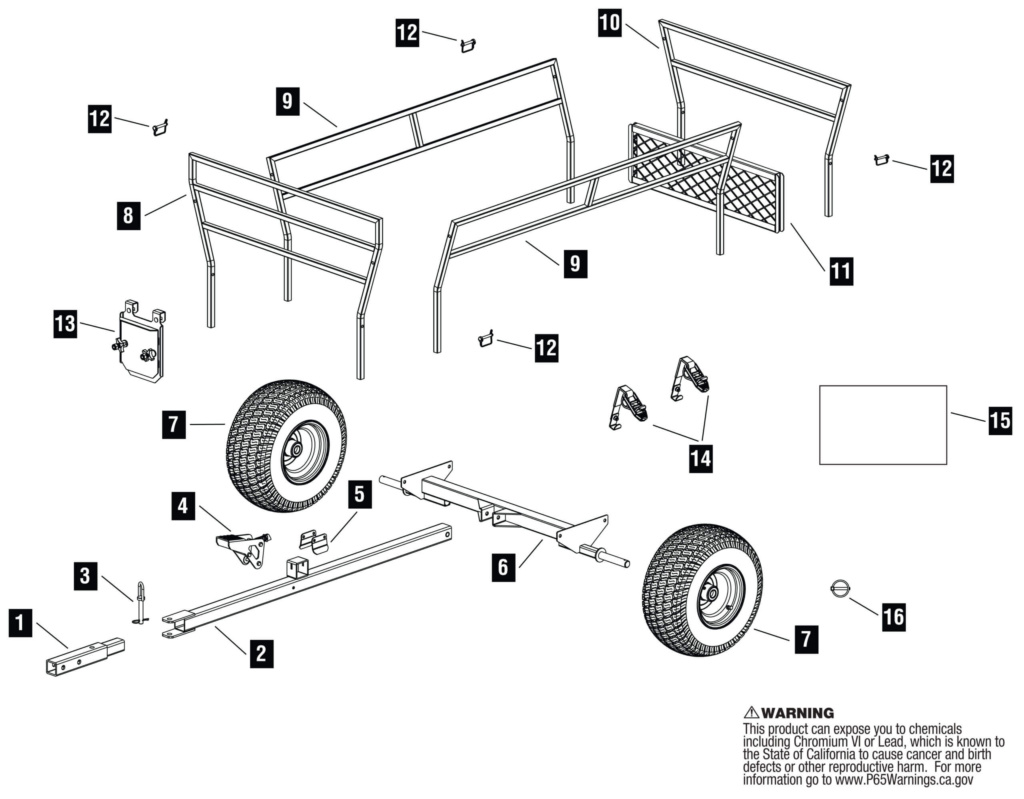

Parts & Accessories
-
1
Coupler Adapter
$25.00
MIS0696
-
2
Tongue (Black)
$35.00
A1032
-
3
Coupler Pin with Clip (1)
$5.00
MIS0885
-
4
Dump Latch Assembly
$20.00
MIS0832
-
5
Tongue Guides (Black)
$10.00
MIS0835
-
6
Axle (Black)
$55.00
A1030
-
7

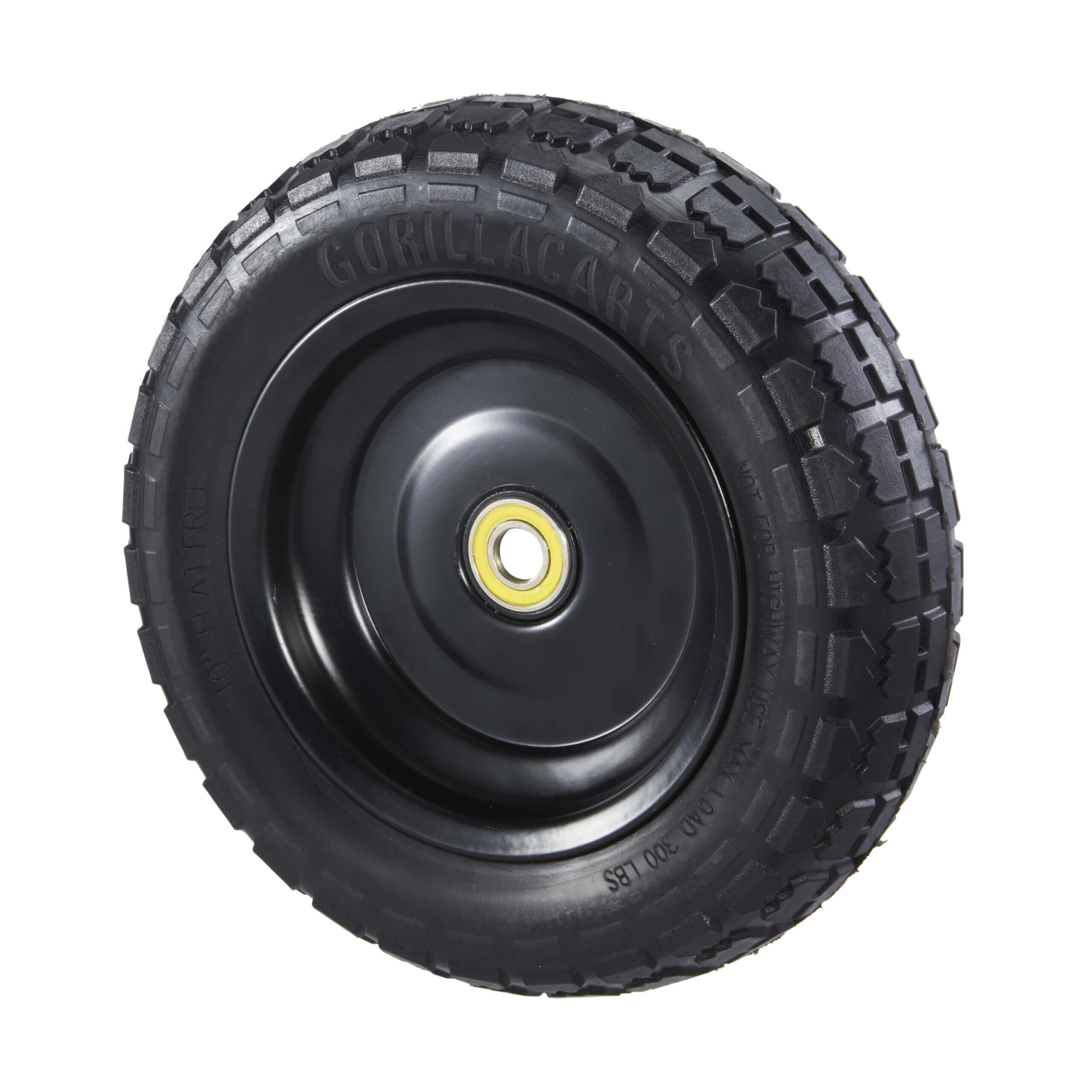

18″ Flotation Gorilla Carts Tire (Solid_ Black Rim)
$80.00
TW0378
-
8
Front Panel (Black)
$40.00
P0777
-
9
Side Panel (Gray)
$40.00
P0776
-
10
Rear Panel (Gray)
$30.00
P0778
-
11
Rear Half Panel (Black)
$20.00
P0779
-
12
Panel Pin (1)
$5.00
MIS0884
-
13
Chainsaw Press Assembly (1)
$29.99
MIS0834
-
14
Tool Holder Assembly (1)
$16.99
MIS0833
-
15
Hardware Kit
$7.00
HW0246
-
16
Lynch Pin
$1.50
MIS0764
Its a very heavy duty cart. I threw some boards in to line the bottom and its great. Very versatile as well. You can take the sides or back down making able to handle any type of load you need. The tool holders and saw holder have also been very useful and are a must. Make sure you grease the hubs.
Jake
